89-031300-000A Diebold Magnetic Card Reader Head HI-CO Head

Product Categories

TS TECH (HONG KONG) CO.,LTD.

Contact Now

89-031300-000A Diebold Magnetic Card Reader Head HI-CO Head

Name: 89031300000A Diebold Magnetic Card Reader Head HICO Head
Brand: DIEBOLD
Price: 1 USD

Quality 89-031300-000A Diebold Magnetic Card Reader Head HI-CO Head wholesale

Brand Name : DIEBOLD

Model Number : 89-031300-000A/89031300-000A/S31A664A16/49-252159-000A

Certification : CO

Place of Origin : Germany

MOQ : 1pc

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 800pcs in stock

Delivery Time : 1day

Packaging Details : Natural packing or according to customer's requirement

Warranty : 90days or 180days after discussing

Condition : Original / generic new

Product name : card reader Magnetic HI-CO Head

Used in : Diebold Opteva ATM machine 562

Working way : It works by reading and writing data on a card reader using the principle that the resistance of a particular material changes with the magnetic field

Shipment : DHL Fedex UPS TNT, By Express/by sea/by air, By Express/ Air/sea, Express, By sea

After-sales service provided : Online support, Video technical support

Weight : 0.05kg

Contact Now

89-031300-000A Diebold Opteva Parts HI-CO MAGNETIC HEAD GUIDE BLK

89-031300-000A Diebold Opteva Parts HI-CO MAGNETIC HEAD GUIDE BLKS31A664A16/49-252159-000A

DN Series™ Motorized Card Reader

Manually Retrieving Retained or Captured Cards

The motorized card reader has an open retained card bin or a locked retained card bin to store cap

tured cards. The retained card bin holds all cards not returned to consumers.

A card may be retained for the following reasons:

•The network commanded the system to retain the card.

•The consumer left the card in the card slot loo long after the transaction session ended.

•After a power failure process ended.

Perform the following steps to manually retrieve retained or captured cards.

1.Open the system and gain access to the card reader.

2.Remove the captured cards from the card bin.

Perform the following steps to clean the card reader with commands.

1.Place the system in maintenance mode.

2.Insert the head cleaning card into the card slot.

3.The card reader tries to read the cleaning card, moves the card over the read head that is being

cleaned and finally ejects the card. It may be necessary to repeat the operation several times.

4.Return the system to the normal mode of operation.

5.Dispose of cleaning card.

89-031300-000A Diebold Magnetic Card Reader Head HI-CO Head

Company Profile

TS TECH (HONG KONG) CO.,LTD founded in 2003 in China,is a leading professional supplier of ATM modules and spares, and help hundreds of customers from around the world to source their NCR, Wincor,Diebold,hyosung,GRG parts.

TS TECH (HONG KONG) CO.,LTD has a professional sales and technical team.Most of our sales have more than 10years experience in ATM industry.Our sales know exactly what machine are used in each Market. They are also experienced in importing&exporting from each country.

It can save your communication times.

Our technical team consists of four members. We have top technicians for every brand.As all of them have years of working experience in manufacturers such as wincor diebold NCR hyosung.They can give you technical support.

We are a direct manufacturer in atm spare parts.our factory located in Guangzhou.TS also have good relationships with original manufacturer.we can get new original parts from manufacturer.

I trust TS can give you good support!

Product Detail

DIEBOLD
Brand	ATM part no.	Machine	Function
Diebold	19-040622-000A	all	1 CH pre read
Diebold	19-040621-000A	all	2 CH pre read
Diebold	29-011535-002A	all	1 CH TRK 2 read
Diebold	89-030466-000B	all	CH 1,2 RD-CH 3 R/W
Diebold	29-011535-003A	all	TK 1,2,3 R/W
Diebold	49-252158-000A	all	TK 1,2,3 R/W
Diebold	89-030465-000-A	all	TK 1,2,3 R/W HiCo
Diebold	89-031300-000-A	all	TK 1,2,3 R/W HiCo
Sankyo	S31A664A16	all	TK 1,2,3 R/W HiCo
Diebold	49-252159-000A	all	TK 1,2,3 R/W HiCo
Diebold	39-013920-000-D	IX	TK 1,2,3 read - ICM 300
Sankyo	SBW246502	Opteva	TK 1,2,3 read - ICM 330
Diebold	89-030528-000-A	Opteva	TK 1,2,3 read - ICM 330
NCR
Brand	ATM part no.	Machine	Function
NCR	998-023-5654	56XX, 58XX	1 CH pre read
NCR	998-023-5658	56XX, 58XX	2 CH pre read
NCR	998-023-5635	56XX, 58XX	1 CH TRK 2 read
NCR	998-023-5657	56XX, 58XX	1 CH TRK 2 read
NCR	998-023-5656	56XX, 58XX	CH 1,2 RD-CH 3 R/W
NCR	998-023-5655	56XX, 58XX	TK 1,2,3 R/W
NCR	998-023-5684	HiCo MCRW	TK 1,2,3 R/W HiCo
Sankyo	SBW237705	HiCo IMCRW	TK 1,2,3 R/W HiCo
NCR	900-300-1970	HiCo IMCRW	TK 1,2,3 R/W HiCo
NCR	998-091-1138	dip readers	TK 1,2,3 read – ICM 300
Sankyo	SBW246502	dip readers	TK 1,2,3 read – ICM 330
WINCOR
ATM	WINCOR PART NUMBER	TS PART NUMBER	FUNCTION
ID18	3976673-0	O3RW104TS	TK 1,2,3, R/W HEAD
ID18	3976669-2	O3RW104TS-HC	TK 1,2,3 R/W HiCo
ID18	2067293-0	O26TS	PRE READ HEAD
V2X	4999785-4	O3RW106TS	TK 1,2,3, R/W HEAD
V2X	6954086-9	027TS	PRE READ HEAD
V2X	-------	O3RW106TS-HC	TK 1,2,3 R/W HiCo
V2CU	-------	O3RW106TS2	TK 1,2,3 R/W HEAD
V2CU	-------	O28TS	PRE READ HEAD
ICM 300	Dip/Insert Readers	TDR33TS	3 CH READ HEAD
CENTRIC	Dip/Insert Readers	TDR33OTS	3 CH READ HEAD

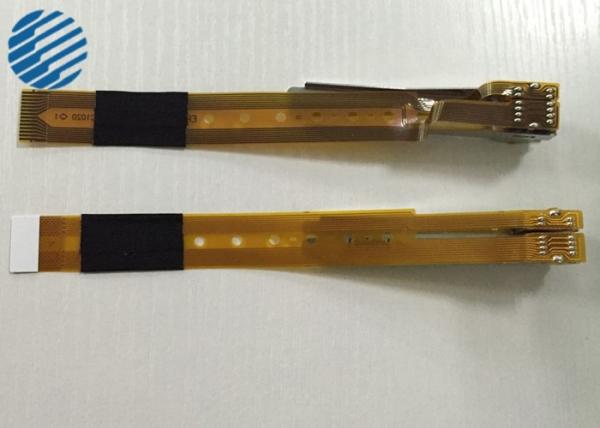

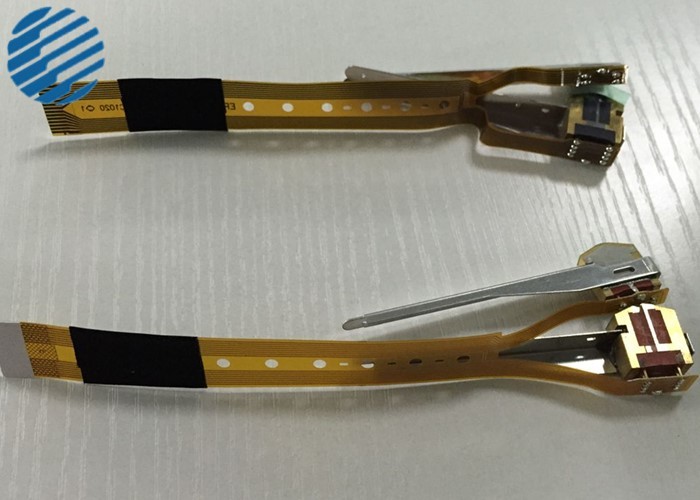

Pics detail

89-031300-000A Diebold Magnetic Card Reader Head HI-CO Head
